TPHC-E7 Natural Convection Electric Trench Heating

TPHC-E7 Natural Convection Electric Trench Heating system design

• 0.8mm galvanised steel construction, painted black internally.

• 0-35mm vertical adjustment. (Longer feet are available on request for larger floor voids).

• Independent operation on the central heating system.

• Silent operation.

• Heating element 230 V AC / 1 Phase / 50 Hz.

• Cable connections to the control regulation with IP44.

• Safety sensors along the entire length of the heating element.

• Galvanized steel casing with black spray layer inside, black cover plates of connection Room thermostat.

• Heating element with Al-Cu ribs and pipe with control and safety sensors, painted black.

• Design rigid walkable grille (AA10).

• Grille frame to match grille (AA10).

• Levelling screws for setting up the casing.

• Manual for the progress of work during installation and user manual.

• Electrical wiring diagram of the trench heaters.

• Transport package for protection against damage during transportation and handling.

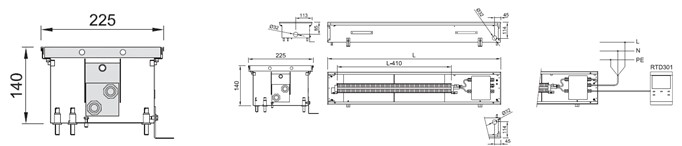

Within this brochure you will find cross sections for all standard models for your information. Please call 07803 307 373 to discuss your specific project requirements or forward an enquiry to along with as much information as possible for a specification document and/or quotation.
